SOFT START MOTOR SERIES
We provide a Soft start motor for long traveling and a Soft start motor for cross traveling. The power supply of the YCD type electromagnetic braking motor is 380V, 3-phase, 50HZ, AC. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The rectifier block is placed in the brake, and the brake power is provided by the motor. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate.
INTRODUCTION of Crane and Hoist Motor
Crane and hoist motor is the driving motor used for overhead crane traveling and electric hoist hoisting & traveling. There are kinds of motors for different purposes. In Liftsmart, you can find soft start motor series, three-in-one gear motor series, two-speed traveling motor series, F/K/R variable frequency motor series, square plate variable hoisting motor series, Euro-style traveling motor series, Euro-style two-speed hoisting gear motor, Euro-style variable frequency hoisting gear motor, etc.

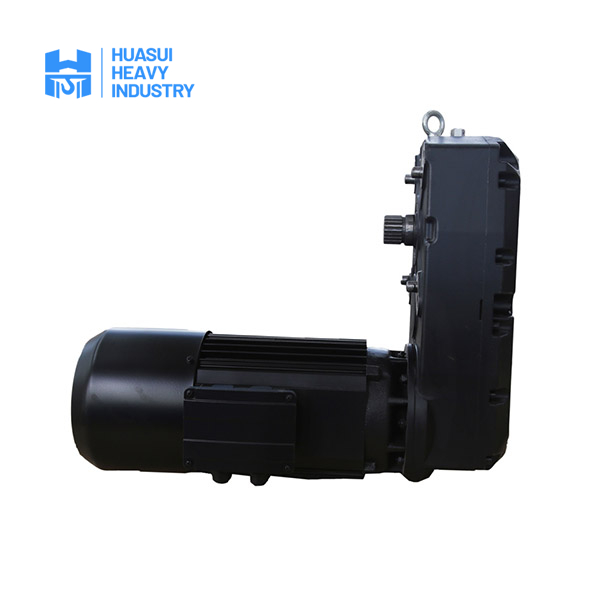

3 IN 1 GEAR MOTOR SERIES
We provide 3 in 1 gear motor for crane and hoist traveling. The power supply of TD type electromagnetic braking motor is 380V, 3-phase, 50HZ, AC. Features: Aluminum class A parallel shaft helical gear motor, smooth operation, low noise. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The rectifier block is placed in the brake, and the brake power is provided by the motor. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate.
DUAL-SPEED MOTOR SERIES
We provide a Dual-speed motor for cross traveling. The power supply of a double winding two-speed electromagnetic brake motor is 380V, 3-phase, 50HZ, AC. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The rectifier block is placed in the brake, and the brake power is provided by the motor. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate.
F/K/R VARIABLE FREQUENCY MOTOR SERIES
The power supply of variable frequency brake motor for traveling is 380V, 3-phase, 50HZ, AC. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The variable frequency drive motor with a double-sided safety brake is equipped with a separate rectifier block, and the power supply of the rectifier block is provided by the outside. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.
DISC DOUBLE-SPEED LIFTING MOTOR SERIES
The power supply of Double winding two-speed electromagnetic brake motor is 380V, 3-phase, 50HZ, AC. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The motor has two speeds, which can be quickly switched by an external contactor. The two-speed drive motor with a double-sided safety brake is equipped with a separate rectifier block, and the power supply of the rectifier block is provided by the motor. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.

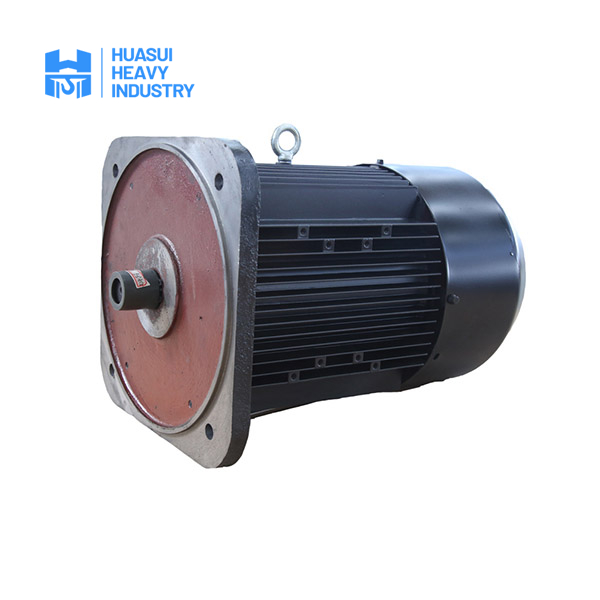

SQUARE PLATE VARIABLE FREQUENCY LIFTING MOTOR SERIES
The power supply of variable frequency brake motor for hoisting is 380V, 3-phase, 50/75/87/100 Hz, AC. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The variable frequency drive motor with a double-sided safety brake is equipped with a separate rectifier block, and the power supply of the rectifier block is provided by the outside. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.
EURO-STYLE TRAVELING MOTOR SERIES
The power supply of Euro-style electromagnetic braking gear motor for traveling is 380V, 87 HZ, 3-ph, AC. Aluminum class-B parallel shaft helical gear motor, smooth operation, low noise. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The frequency of variable drive motor with double-sided safety brake can reach 87 Hz. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.
EURO-STYLE 2-SPEED 3-IN-1 GEAR MOTOR
The power supply of Euro-style electromagnetic braking gear motor for traveling is 380V, 50 HZ, 3-ph, AC. Aluminum class-C parallel shaft helical gear motor, smooth operation, low noise. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. The two-speed drive motor with a double-sided safety brake is equipped with a separate rectifier block, and the power supply of the rectifier block is provided by the motor. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.
EURO-STYLE VARIABLE FREQUENCY 3-IN-1 HOISTING GEAR MOTOR
The power supply of variable frequency three-in-one drive for hoisting is 380V, 3-phase, 75/100 HZ, AC. Aluminum class-C parallel shaft helical gear motor, smooth operation, low noise. The insulation grade of regular products is F (155 ℃) and the protection grade is IP54. Please consult for other requirements. The variable frequency drive motor with a double-sided safety brake is equipped with a separate rectifier block, and the power supply of the rectifier block is provided by the outside. Brake with brake force adjustment and air gap adjustment device after wearing of the brake friction plate. The brake air gap has a service life of about 1 million braking times after each adjustment.
