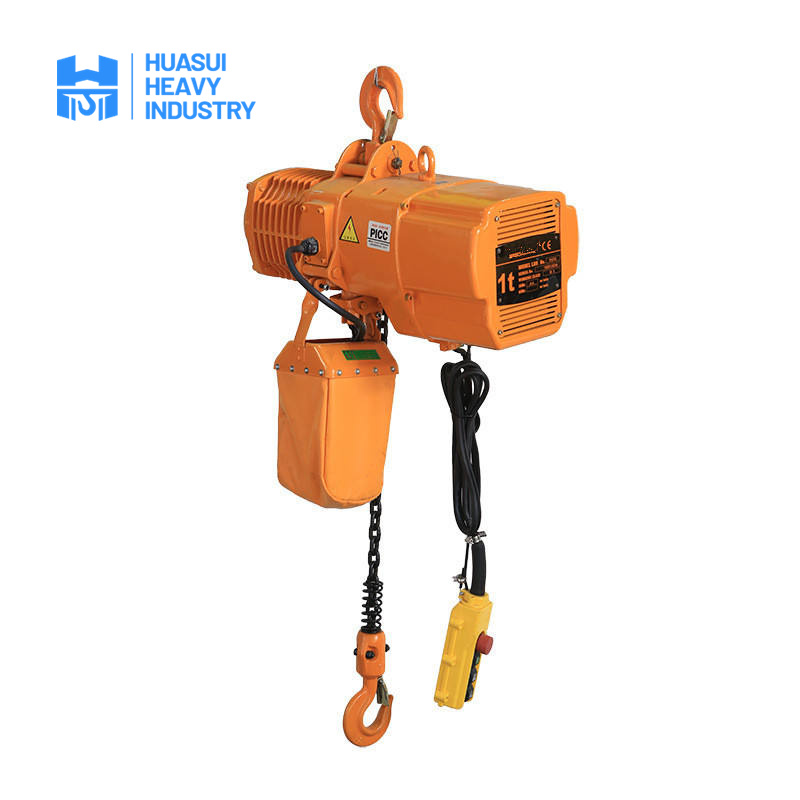

Description
Features

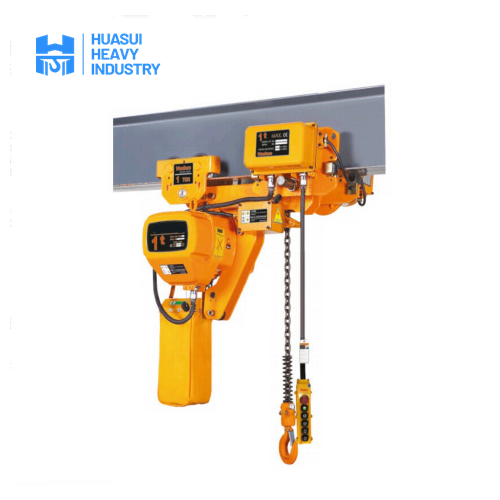

Compact Design: Lightweight and space-saving, perfect for installations in tight or low-clearance areas.
Energy-Efficient: Optimized for low power consumption while delivering consistent lifting performance.
Customizable Options: Available in various lifting capacities, speeds, and configurations to suit specific operational needs.
Smooth and Quiet Operation: Ensures a comfortable working environment with minimal noise and vibration.
Versatile Applications: Adapts seamlessly to diverse working conditions and industries.
Technical Parameters
Single speed
| Model | FW | |||||||||
| 0.5-01s | 01-01s | 1.5-01s | 02-01s | 02-02s | 2.5-01s | 03-01s | 03-02s | 03-03s | 05-02s | |
| Lifting capacity (t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting speed (m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor Ppower (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation speed (r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V-690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
Dual speed
| Model | FW | |||||||||
| 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | |
| Lifting capacity (t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 5 | |||
| Lifting speed (m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor Ppower (Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation speed (r/min) | 2880/960 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V-690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec.of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
Application
Workshops and Garages: Compact and efficient for small-scale operations and maintenance tasks.
Warehouses and Logistics: Streamlines loading, unloading, and goods handling.
Assembly Lines: Perfect for precision lifting in manufacturing and production facilities.
Retail and Showrooms: Supports displays and storage tasks requiring compact lifting solutions.
Construction and Maintenance: Suitable for light material handling in building projects and repairs.
Details
Chain
High-grade alloy steel chain with excellent tensile strength and wear resistance.
Provides reliable lifting with minimal maintenance requirements.
Motor
Energy-efficient motor with thermal protection to prevent overheating.
Reduces energy consumption while ensuring consistent performance under continuous operation.
Load Hook
Forged steel hook equipped with a safety latch to secure loads during lifting.
Guarantees safe handling of loads with quick and reliable attachment.

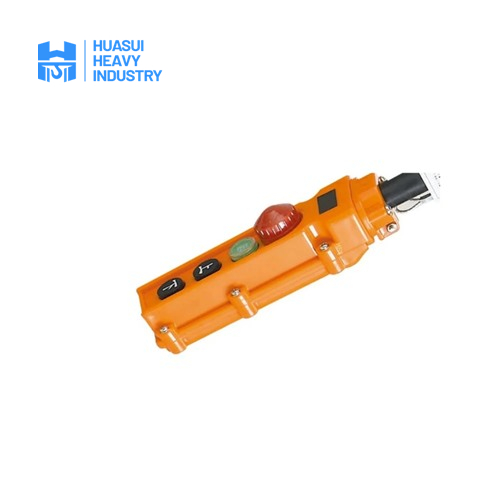

Control System
Ergonomic pendant control or wireless remote for precise and easy operation.
Increases operator efficiency and enhances safety with overload protection.
Housing
Durable and lightweight aluminum alloy housing that protects internal components from dust and impact.
Ensures long service life and reliable operation in various environments.
