Factory making electric winch with frame - Crane Wheel – Huasui Detail:
Product detail pictures:
It is our responsibility to meet your needs and efficiently serve you. Your satisfaction is our best reward. We are looking forward to your visit for joint growth for Factory making electric winch with frame - Crane Wheel – Huasui , The product will supply to all over the world, such as: Portugal , Surabaya , Madagascar , We hope we can establish long-term cooperation with all of the customers. And hope we can improve competitiveness and achieve the win-win situation together with the customers. We sincerely welcome the customers from all over the world to contact us for anything you need!
Factory making electric winch with frame - Crane Wheel – Huasui Detail:
Product Description

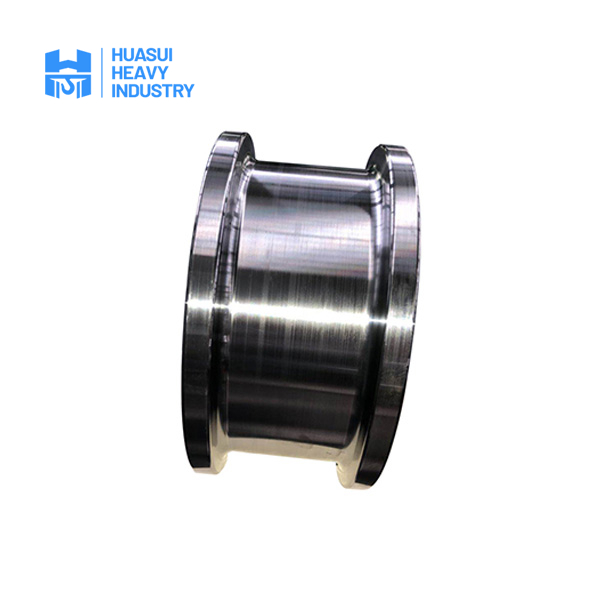

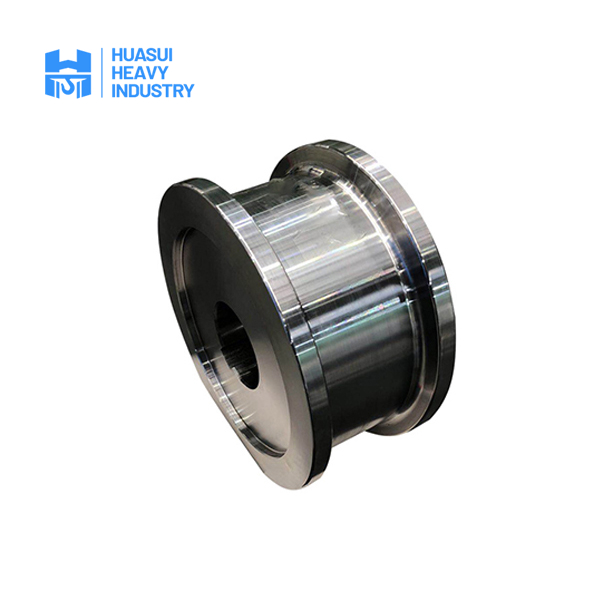

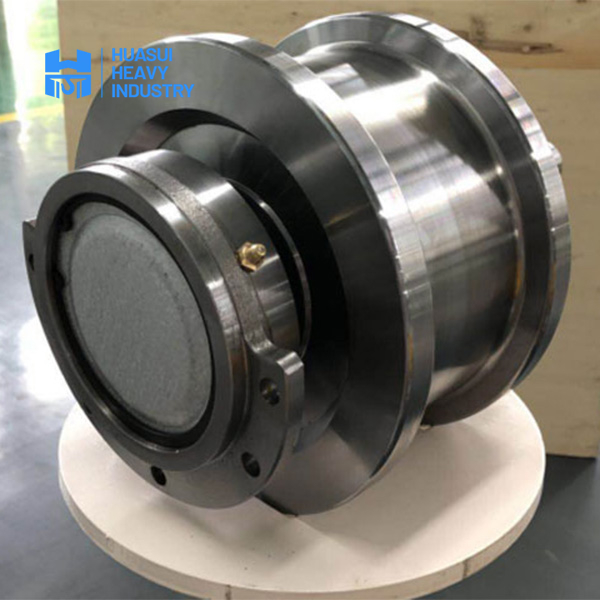

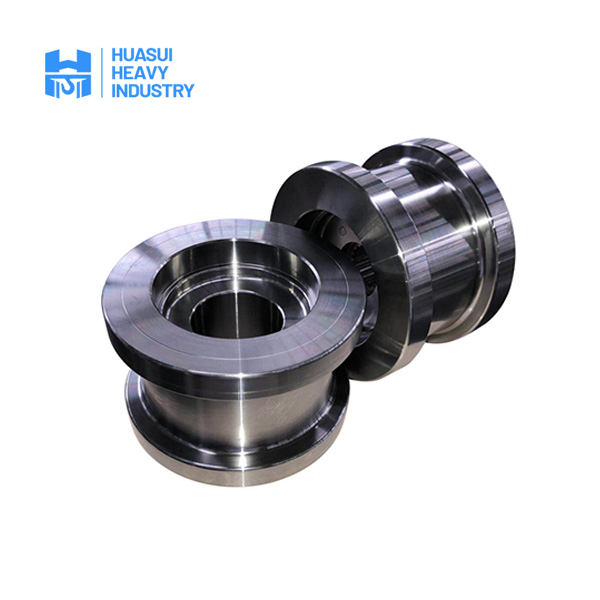

The wheel set is a mechanical device consisting of a wheel and a shaft, a bearing and a bearing housing. The crane wheel set is generally used for the vehicle to support the crane and the load, and at the same time, the crane is allowed to perform the reciprocating running operation on the specified track.
Advantages
- The wheels are light in weight
- Small volume
- Easy to install
- The forged wheel piece is mainly composed of four parts: wheel axle, wheel piece, bearing box and bearing. Because it needs to be directly matched with the three-in-one reducer, it does not need to be connected by the coupling, and the assembly precision is high. 5,The bearings adopt imported NSK and SKF bearings and have a long service life.
Application
The European wheel set has been widely used in single beam cranes and double beam cranes, and has achieved good application results, which has been recognized by many users. Due to the excellent performance of such wheel sets, more and more applications will be applied in the lifting industry.
Technical Parameters
| Name | Wheel width mm | Groove width mm |
| Ø125 driving wheel | 110 | ≤85 |
| Ø125 driven wheel | 110 | ≤85 |
| Ø140 driving wheel | 120 | ≤90 |
| Ø140 driven wheel | 120 | ≤90 |
| Ø160 driving wheel | 120 | ≤90 |
| Ø160 driven wheel | 120 | ≤90 |
| Ø200 driving wheel | 130 | ≤95 |
| Ø200 driven wheel | 130 | ≤95 |
| Ø250 driving wheel | 140 | ≤105 |
| Ø250 driven wheel | 140 | ≤105 |
| Ø315 driving wheel | 150 | ≤110 |
| Ø315 driven wheel | 150 | ≤110 |
Product detail pictures:
