Product Application
Electric winch or windlass is a kind of widely used machine in lifting machinery field. It's widely used in industrial and mining, metallurgy, hoist construction, chemical, road and bridge, dock, oil industry ect. It has been a necessary machine in construction site and port pier. It not only can be used independently, but also can work with other large-scale and complex machine.
Features
- Double limit switch;
- Current overload protection device;
- Weight overload protection device;
- Emergency brake;
Technical Parameters
| Model | Rated load(KN) | Rated speed (m/min) | Rope capacity(m) | Rope diameter(mm) | Motor model | Motor model(KW) | Overall dimensions(mm) | Total weight(kg) |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM3.2 | 32 | 10 | 150 | 15.5 | YZR16M2-6 | 7.5 | 1430*1160*910 | 1100 |
| JM5 | 50 | 10 | 250 | 21.5 | YZR160L-6 | 11 | 1235*1230*805 | 1500 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2600 |
| JM8B | 80 | 9.5 | 350 | 26 | YZ180L-6 | 15 | 1075*1589*985 | 2500 |
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705*1598*985 | 3500 |
| JM12.5 | 20 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM13.5 | 32 | 5 | 290 | 28 | YZP225S-8 | 22 | 2990*2363*1650 | 6500 |
| JM16 | 32 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 50 | 10 | 600 | 43 | 45YZR280S-8 | 55 | 3950*2560*1950 | 9900 |
| JM25 | 50 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 50 | 9 | 700 | 56 | YZR315S-8 | 75 | 4500*2850*2030 | 14800 |
| JM50 | 50 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 50 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |

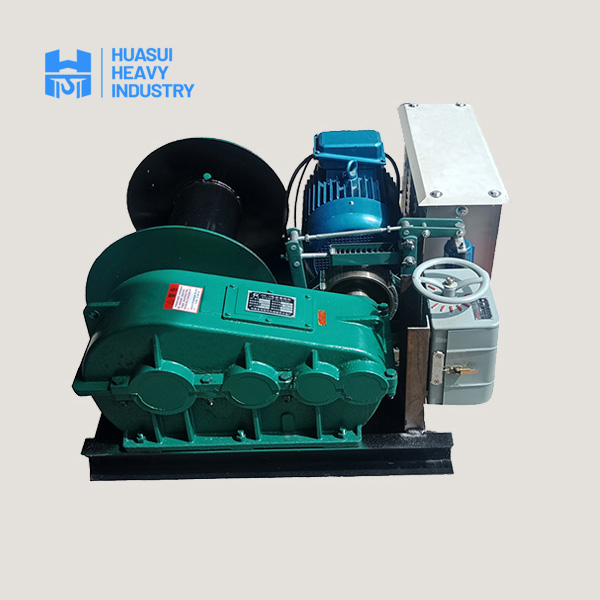

Electric slow speed winch
Loading capacity: 0.5~200 t
Working speed: 5~20 m/min;(single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

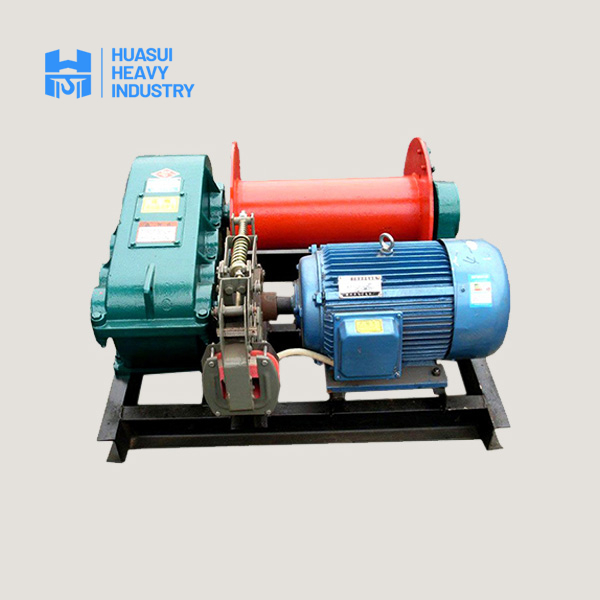

High speed Electric Winch
Loading capacity: 0.5~60 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min; (single speed and dual speed)
Power supply: 220-690V, 50/60HZ, 3Phase

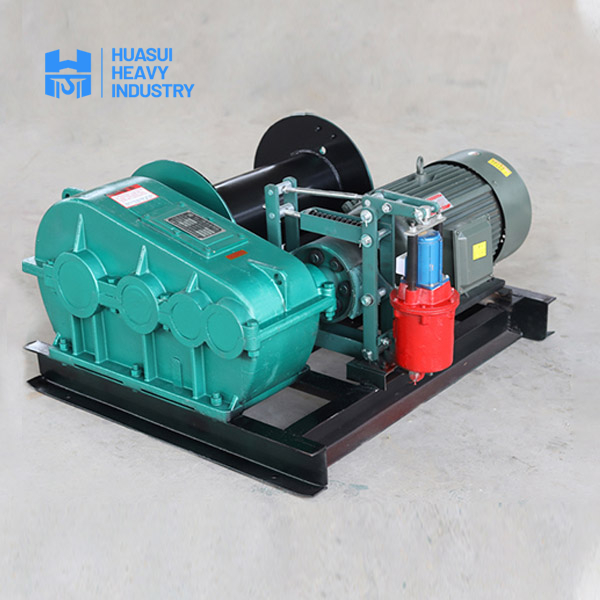

Electric Piling Winch
Loading capacity: 1~10t
Rope capacity: 20~500 m
Working speed: 20~36 m/min
Power supply: 220-690V, 50/60HZ, 3Phase
Electric planetary winch
Loading capacity: 0.75-2 t
Rope capacity: 20~500 m
Working speed: 20~35 m/min
Power supply: 220-690V, 50/60HZ, 3Phase
Friction electric winch
Loading capacity: 1-100 t
Rope capacity: 20~500 m
Working speed:5~20 m/min
Power supply: 220-690V, 50/60HZ, 3Phase
