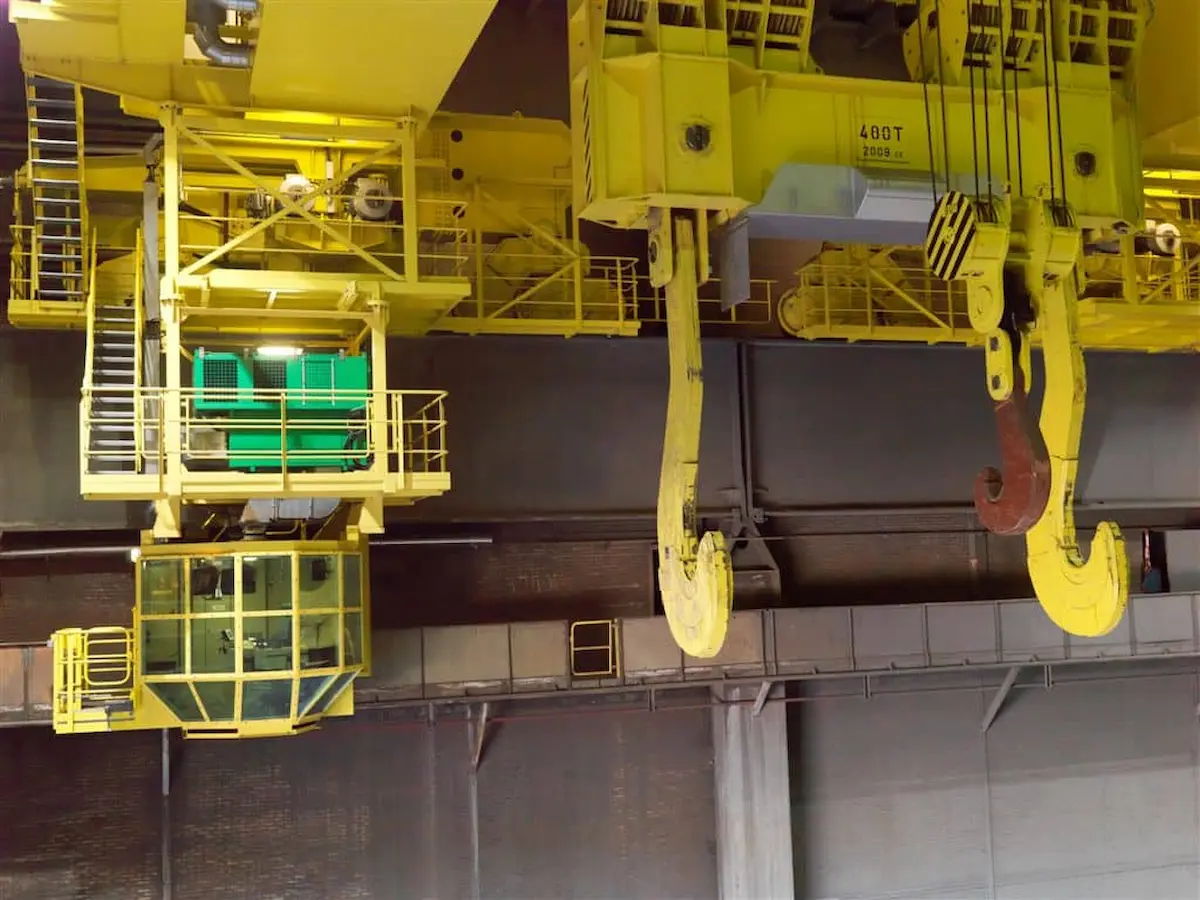

What is a Crane Cabin?

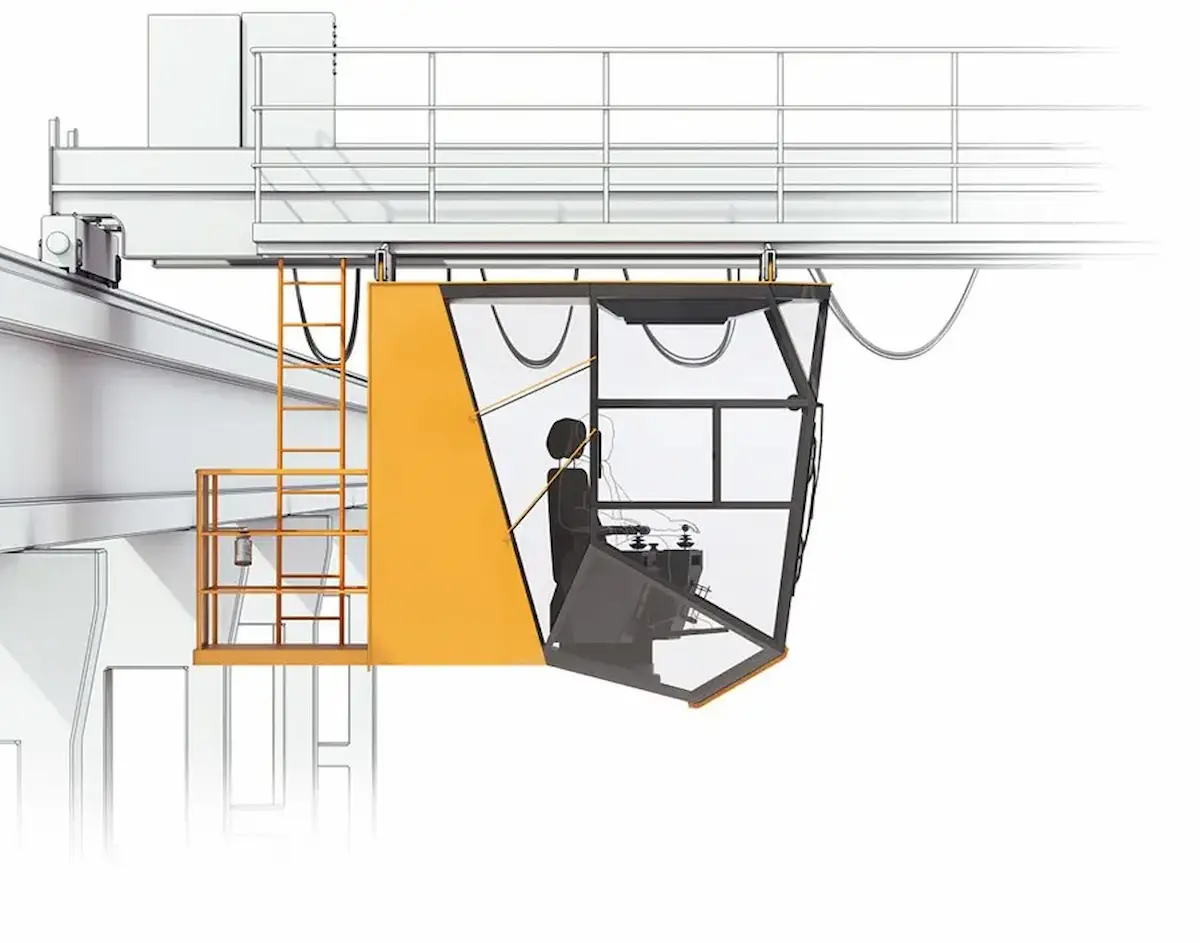

A crane cabin (also known as an operator’s cabin) is the command center of a crane, where operators control and monitor crane operations. It is typically built with a reinforced shell, ergonomic seating, control consoles, air-conditioning systems, and integrated display units.
Beyond serving as a workspace, the cabin creates a safe and comfortable environment, while housing the essential control and monitoring systems needed to ensure cranes operate with efficiency, accuracy, and safety.
The Importance of Crane Cabins in Overall Crane Structure
Crane cabins play a vital role in the overall crane system, directly influencing operator comfort, safety, and maintenance efficiency.

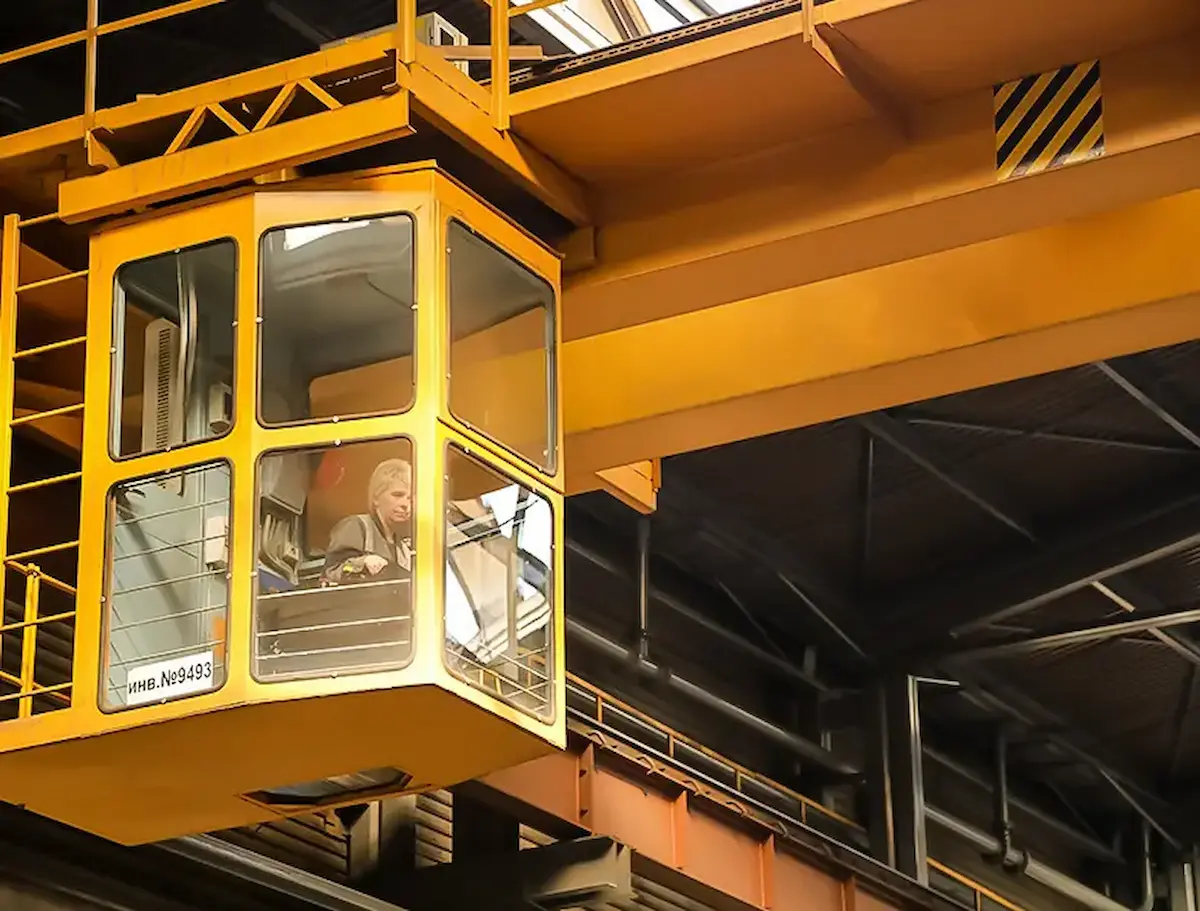

Operator Comfort
The cabin is the operator’s primary working environment, often for long shifts. An ergonomically designed seat is essential to reduce fatigue and maintain productivity. Adjustable, well-padded seating supports the body, helping operators stay focused and efficient throughout the workday.
Operational Safety
A poorly designed cabin layout or restricted visibility can cause misjudgments, leading to accidents such as dropped loads or collisions. A crane operator cabin must therefore provide:
- Clear, wide-angle visibility of the lifting area
- Ergonomic control layouts that minimize unnecessary body movement
- Accurate and intuitive information systems to support safe, real-time decision-making
Maintenance & Serviceability
Easy maintenance extends both safety and service life. A cabin designed with detachable panels and washable interiors reduces downtime, improves reliability, and lowers long-term operating costs.
Key Design Elements of Crane Cabins
A well-designed crane operator’s cab balances safety, comfort, and durability — addressing the relationship between the operator, the machine, and the environment.
Safety Features
- High-Strength Structure
Built with reinforced steel or alloy materials to meet international safety standards (such as ISO 13857), ensuring resistance to impact and pressure. Protective frames surround the cabin for additional security.
- Safety Glass
Windows use laminated, shatter-resistant glass to prevent penetration from flying debris or falling objects. Anti-UV coatings improve visibility and reduce heat build-up inside the cabin.
- Dust & Fire Protection
Sealed doors and air filtration systems keep out dust and contaminants, especially important in mining and steel industries. Fire-resistant materials and integrated fire extinguishers further enhance safety.

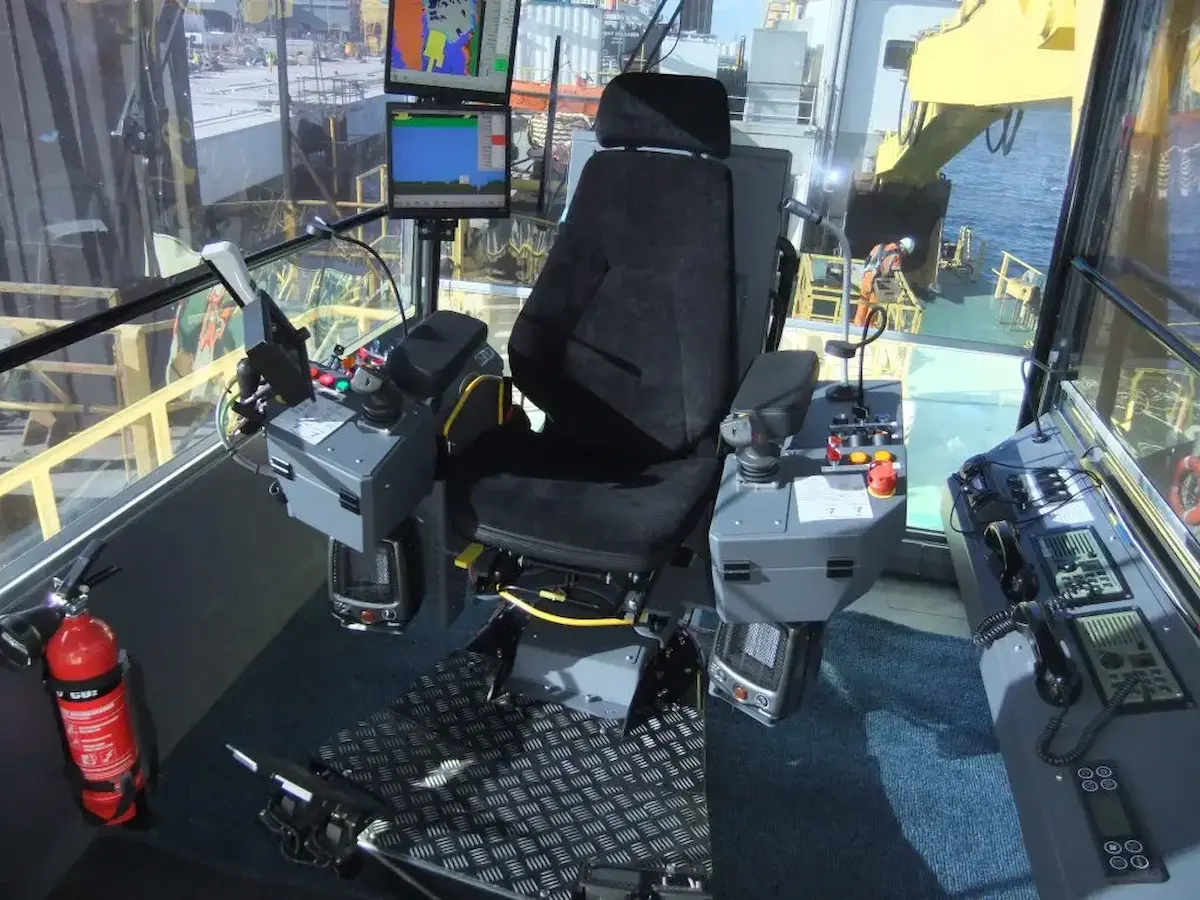

- Ergonomic Control Console
Control levers, joysticks, and panels are arranged based on ergonomic principles, minimizing strain while maximizing operational accuracy. Emergency stop systems are always within easy reach.
Comfort Features
- Ergonomic Seating
Adjustable seats with lumbar support reduce fatigue during long hours of operation. High-quality breathable fabrics or leather materials enhance comfort.
- Air Conditioning & Climate Control
A reliable HVAC system maintains ideal working conditions in extreme weather, ensuring operators remain focused and alert.
- Noise Reduction
Soundproofing materials and anti-vibration design minimize both external noise and internal mechanical vibrations.
- Enhanced Visibility
Wide windows, strategically placed mirrors, and anti-glare coatings reduce blind spots and eye strain.
Durability Features
- High-Strength, Corrosion-Resistant Materials
Stainless steel, alloy steel, and weather-resistant coatings (such as galvanization or special paint) ensure durability against humidity, salt, and acid rain.
- Modular Design
Easily replaceable components and detachable modules make maintenance faster and more cost-effective.
- Dust proof & Waterproof Sealing
Protects electronic systems and extends cabin lifespan in harsh industrial environments.
Typical Applications of Crane Cabins

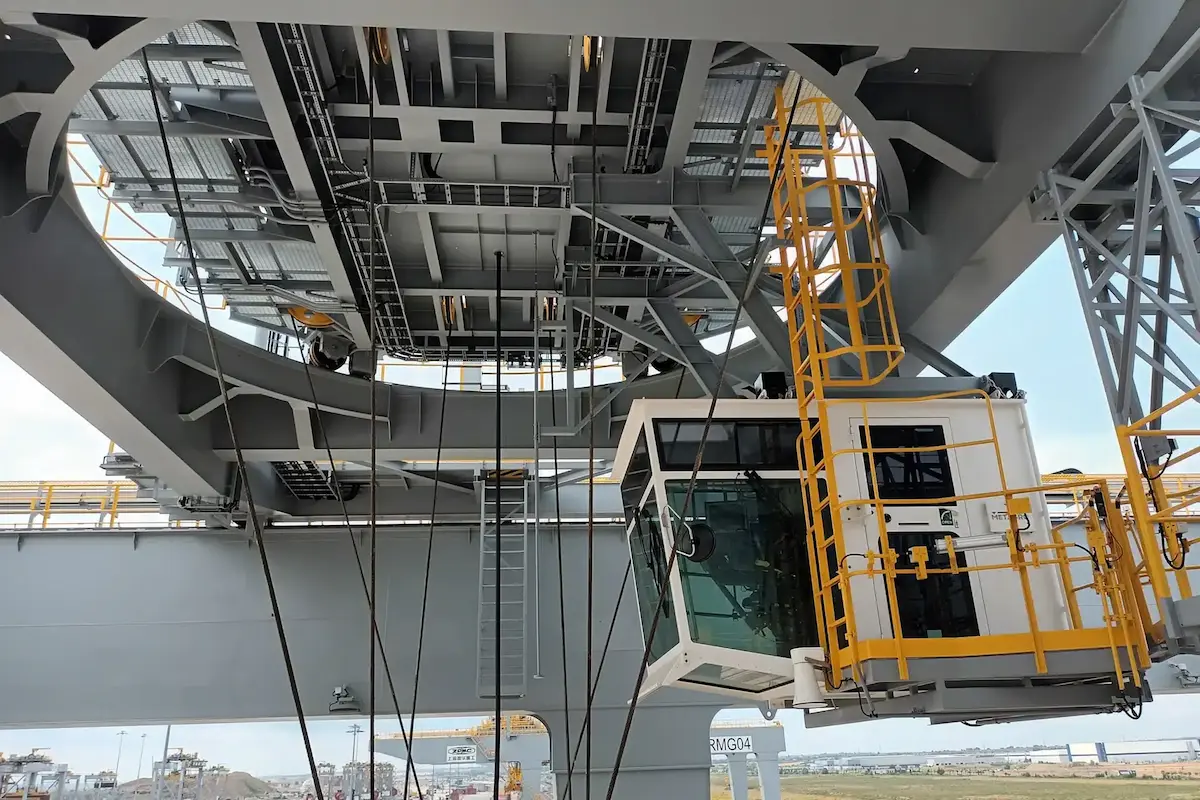

Port & Terminal Operations
Gantry crane cabins at ports face challenging conditions such as salt corrosion, humidity, and strong winds. Cabins must therefore provide reinforced durability, comfort, and advanced safety systems for efficient container handling.

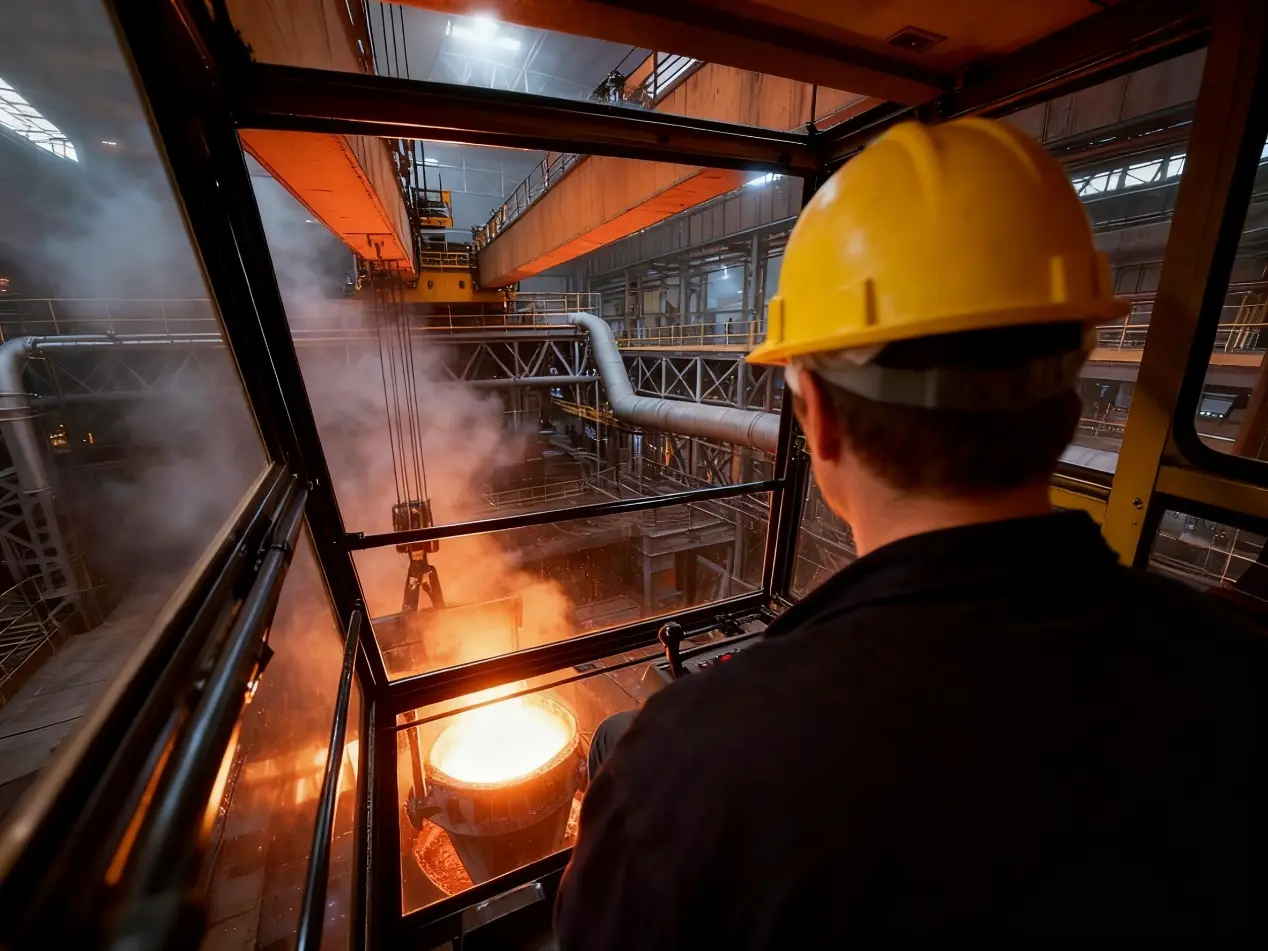

Steel & Metallurgical Plants
In steel plants, cabins are exposed to extreme heat and heavy dust. They require:
- Sealed, dust proof structures
- Heat-resistant glass and insulation materials
- Advanced ventilation systems to maintain safe conditions

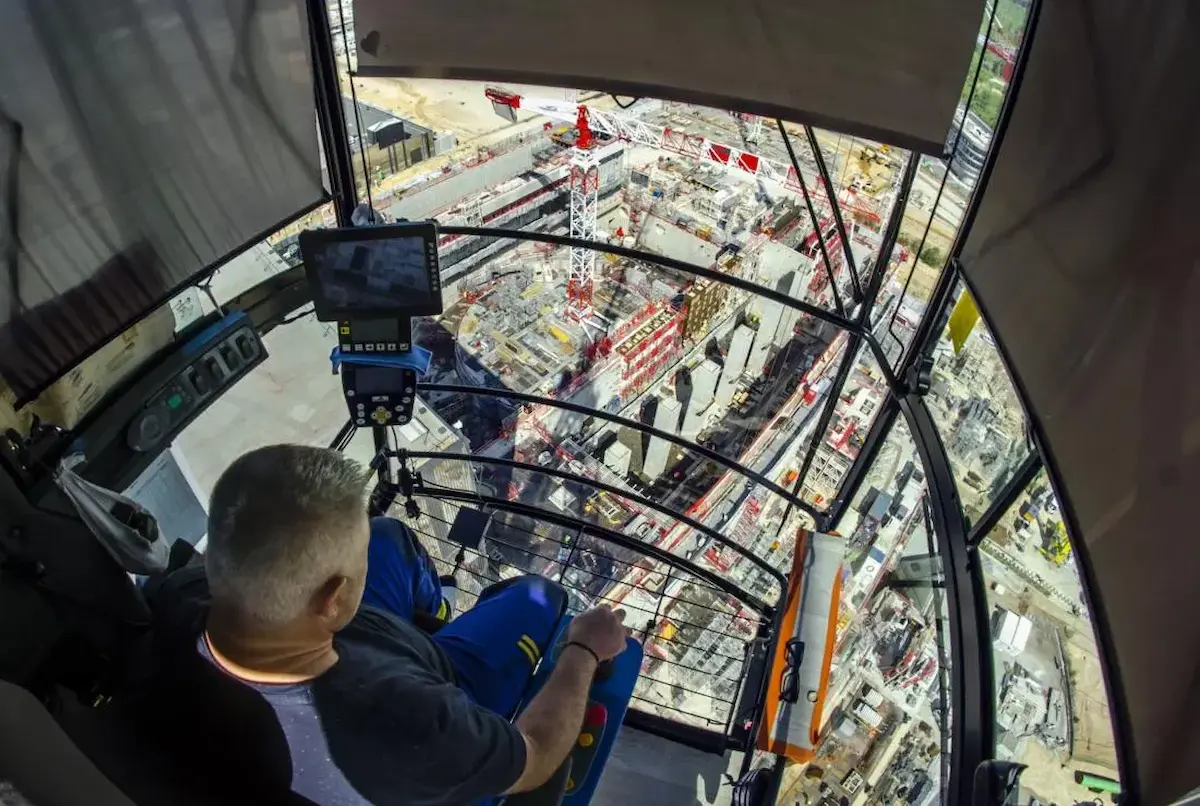

Construction Industry
In construction projects, the crane cabin serves as the control hub for lifting, moving, and rotating heavy loads. Cabins are built with:
- Rugged materials to withstand impacts
- Safety systems such as anti-tipping protection and emergency stop functions
- Clear operator interfaces for efficient handling
Mining Industry
Mining crane cabins must withstand shocks, falling rocks, and vibrations. Reinforced steel panels and impact-resistant glass provide essential protection, ensuring operators remain safe in extreme conditions.
Custom Crane Cabin Solutions
At HSCRANE, we design and manufacture customized crane cabins tailored to different working environments and crane types, including overhead cranes, gantry cranes, port cranes, and tower cranes.
Custom Options Include:
| Customization Options | Function Description | Suitable Environment / Requirements |
| Seat Design | Ergonomic seat with height adjustment, angle adjustment, and lumbar support to reduce operator fatigue during long working hours. | Ideal for long-hour operation and high-frequency tasks. |
| Air Conditioning System | Customized air conditioning solutions for different climate conditions, including high-efficiency cooling/heating and air purification systems. | Suitable for high-temperature, high-humidity, low-temperature, or dusty environments. |
| Control Console Layout | Ergonomically designed arrangement of buttons, joysticks, and display screens to minimize operator strain and improve efficiency. | Perfect for long operating shifts and efficiency-focused tasks. |
| Safety Glass & Protective Frame | Impact-resistant laminated safety glass with reinforced protective frames for enhanced safety. | Designed for high-altitude and harsh working environments. |
| Monitoring & Sensor System | 360-degree surveillance cameras, real-time display screens, and safety sensors to ensure full visibility and operational safety. | Best for high-risk or complex job sites requiring enhanced safety control. |
| High-Temperature Resistant Materials | Use of heat-resistant glass and composite insulation layers to maintain a stable cabin temperature. | Essential for high-temperature environments such as steel plants or blast furnaces. |
| Dust proof & Anti-Corrosion Design | Equipped with dust proof systems, corrosion-resistant coatings, and durable materials to protect equipment. | Recommended for dusty or corrosive environments such as mining sites and steel mills. |
| Wireless Communication System | Built-in wireless intercom system for reliable communication between operators and ground staff or other equipment. | Ensures efficient communication in demanding job sites. |
| Modular Design | Detachable, easy-to-replace modular components for convenient maintenance and system upgrades. | Ideal for environments requiring frequent maintenance or upgrades. |
| UV-Resistant Coating | Special UV-resistant coating on windows to reduce direct sunlight and operator eye strain. | Perfect for high-sunlight or high-temperature environments, enhancing visual comfort. |
Choose the Right Crane Cabin for Your Needs
Whether it’s an overhead crane cabin, gantry crane cabin, or a custom crane operator cab, each cabin is designed with unique features to match specific working conditions.
Understanding the differences in cost, environment, structure, and performance is crucial for selecting the right cabin for your project.
At HSCRANE, we provide expert consultation and tailored solutions to ensure your crane cabin meets all safety, comfort, and durability requirements.
Contact us today to learn more about our crane cabin solutions and get a customized quote.
