With the advancement of Saudi Arabia’s “Vision 2030,” the local industrial sector has entered a period of rapid development. From steel manufacturing and machining to logistics and warehousing, more and more factories are expanding production lines and introducing modern, high-efficiency material handling equipment. In this process, the construction and upgrading of overhead crane systems have become key steps for many enterprises to enhance production capacity.
To improve lifting efficiency within the plant and meet the need for wider-span production lines, an industrial customer in Saudi Arabia launched a project for installing crane support beams and rail systems. After thoroughly evaluating the technical capabilities and overseas service experience of multiple suppliers, the customer ultimately chose to cooperate with HSCRANE. We provided a fully integrated solution covering support-beam fabrication, rail system configuration, installation, and commissioning.
Project Requirements: New Challenges Brought by Industrial Upgrading
The customer is located in the eastern industrial zone of Saudi Arabia, mainly engaged in machining and heavy-equipment manufacturing. With the increase in orders, the original overhead crane system could no longer meet the new production needs in terms of load capacity, operational stability, and working coverage. The customer hoped to build a new crane system in the expanded workshop that could operate reliably over the long term and adapt to high temperatures and dusty desert conditions in Saudi Arabia.
The core project requirements included:
●Higher load capacity: To handle heavy workpieces and large equipment.
●Longer span: To cover wider production lines and storage areas.
●Higher safety level: Ensuring stability during continuous operations.
●Adaptation to Saudi’s harsh environmental conditions: High temperatures, dryness, heavy dust, and large temperature variations.
To achieve this, the customer required not only high-strength structural support beams but also a highly precise and extremely reliable rail system. The project holds strategic importance for the factory’s future operations.
Project Challenges: Heavy Load, High Temperature, and Extremely High Installation Precision
The engineering environment in Saudi Arabia imposed multiple challenges on the crane rail system:
●Heavy loads and wide spans create higher structural requirements: Support beams must maintain sufficient rigidity under high loads and long spans to prevent excessive deflection or fatigue issues.
●High temperatures affect structural stability: Outdoor temperatures can exceed 45°C in summer, causing thermal expansion that generates extra stress—making rail joints a critical concern.
●Wind and sand cause long-term wear: Rail surfaces exposed to desert dust face increased abrasion, affecting the overhead crane’s travel smoothness.
●Installation precision is the core difficulty: Rail parallelism, straightness, and levelness must be strictly controlled within tolerance. Any deviation may lead to abnormal wear, vibration, or even safety hazards.
Facing these challenges, the HSCRANE engineering team developed a targeted, project-specific technical solution.
HSCRANE‘s Professional Solution: Tailor-Made for Saudi Arabia‘s Environment
To cope with the extreme high-temperature, dry, and dusty environment in Saudi Arabia, HSCRANE provided an optimized structural and rail system solution:
●High-strength support beam structure: Made from high-strength structural steel and optimized through finite element analysis to enhance bending resistance, torsional rigidity, and structural stiffness, ensuring stability under long spans and heavy loads.
●High-precision rail system: Equipped with wear-resistant heavy-duty rails, precision machining, and laser-guided installation to maintain long-term straightness and parallelism, improving crane travel stability.
●Enhanced corrosion and environmental protection: Using marine-grade anti-corrosion coatings, sand-resistant design, heat-resistant materials, and protective components to ensure long-term reliability in harsh outdoor environments.
Project Execution: From Manufacturing to On-Site Delivery
HSCRANE was responsible for the entire process of beam and rail system manufacturing, transportation, and installation. Support beams underwent material inspection, welding, calibration, and non-destructive testing at the factory before being shipped to Saudi Arabia by sea. The engineering team completed foundation measurements, beam installation, welding, and laser-guided rail alignment on site.
After installation, no-load and full-load tests were conducted, followed by travel system calibration and optimization. The system successfully passed final acceptance, and we provided training on operation and maintenance—achieving a seamless transition from manufacturing to delivery.

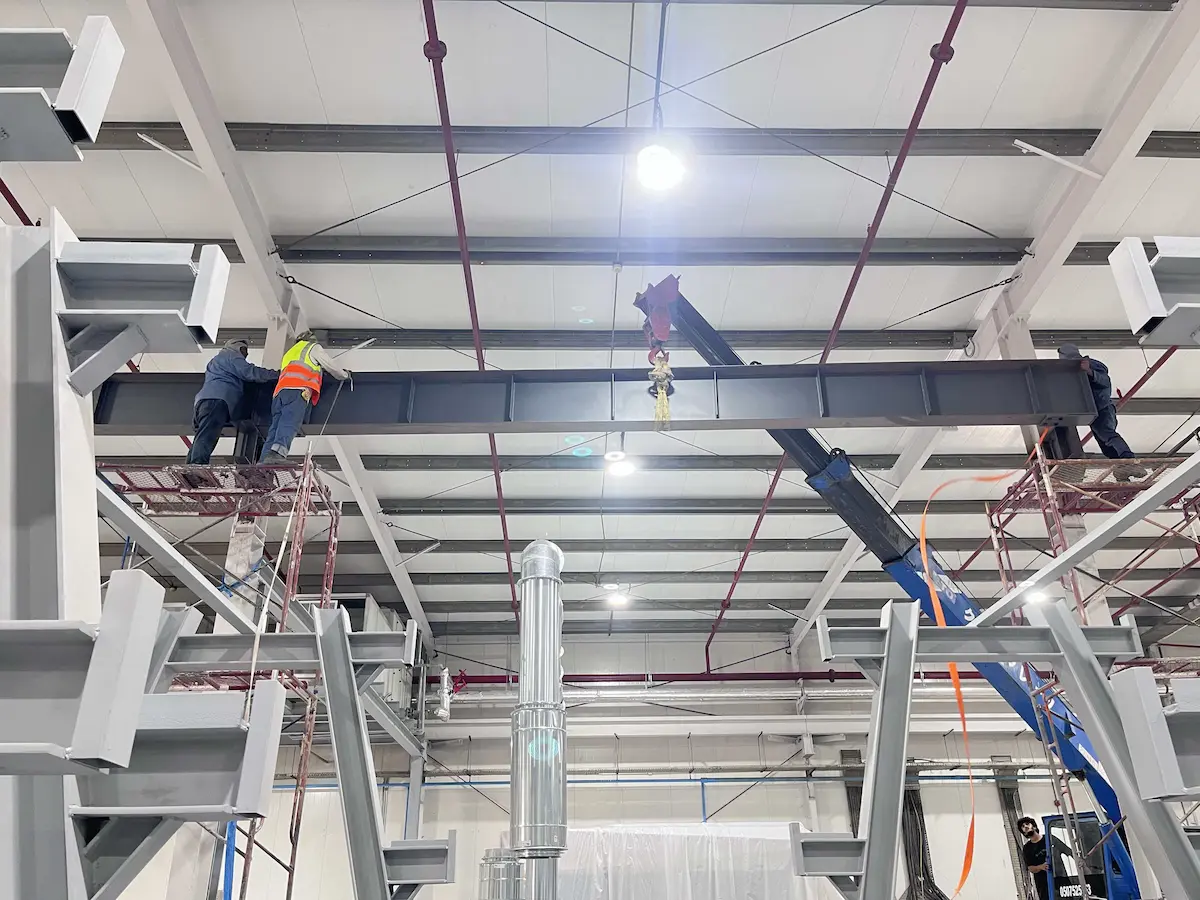

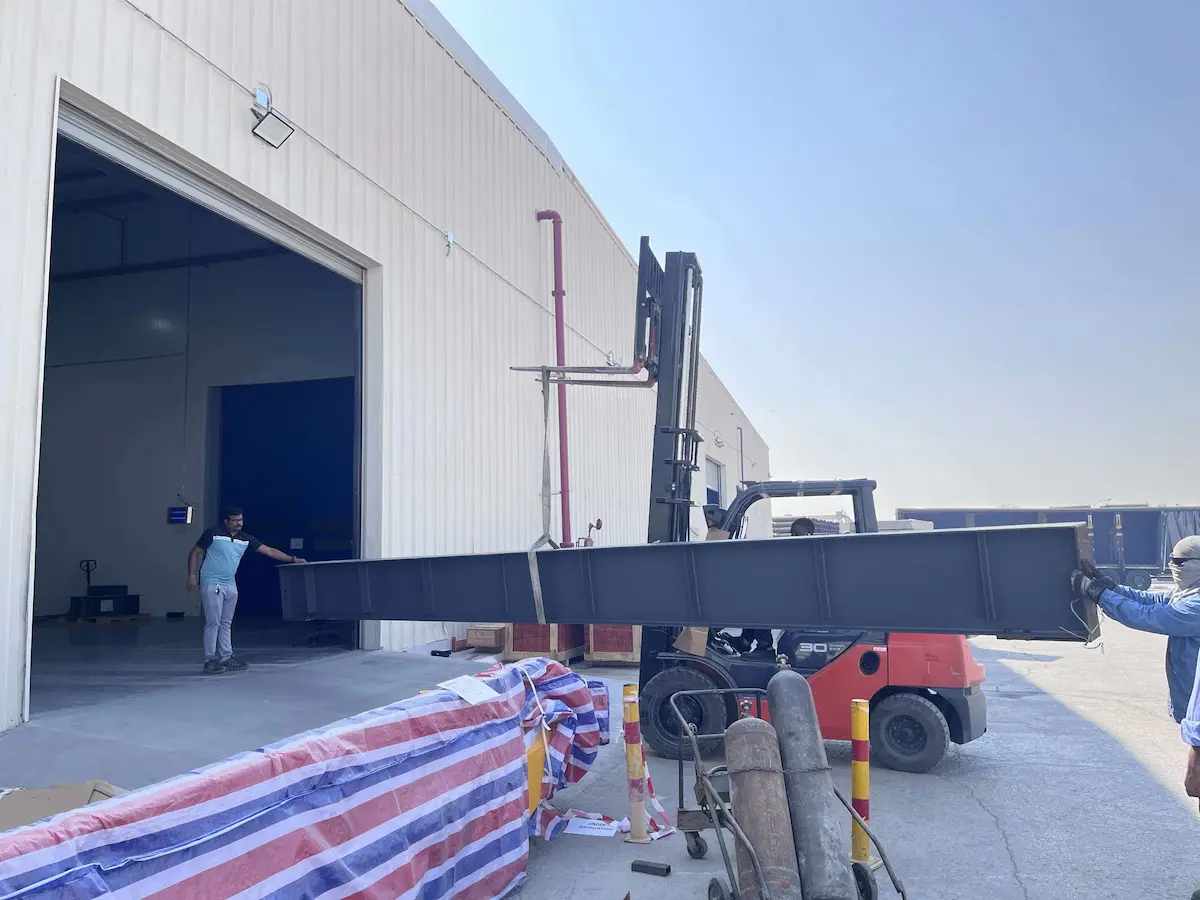

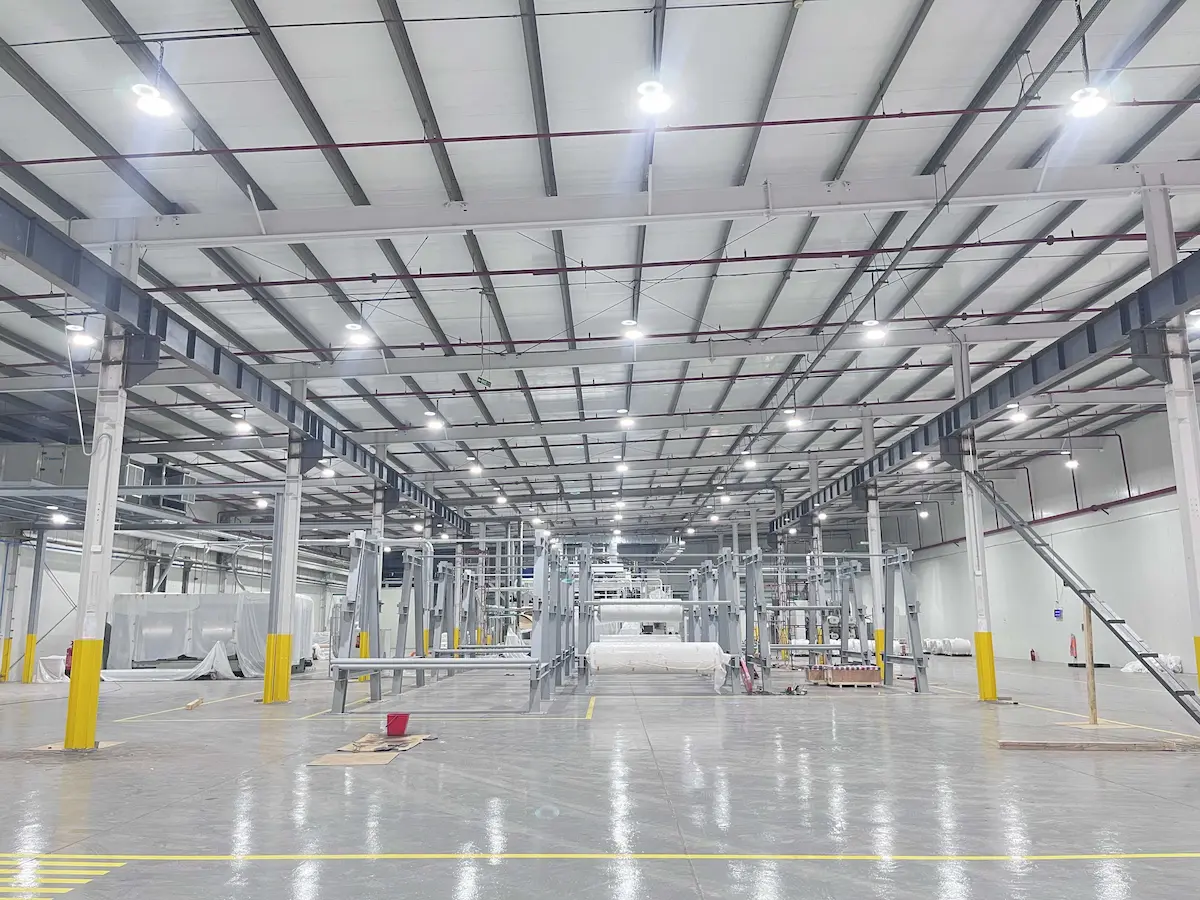

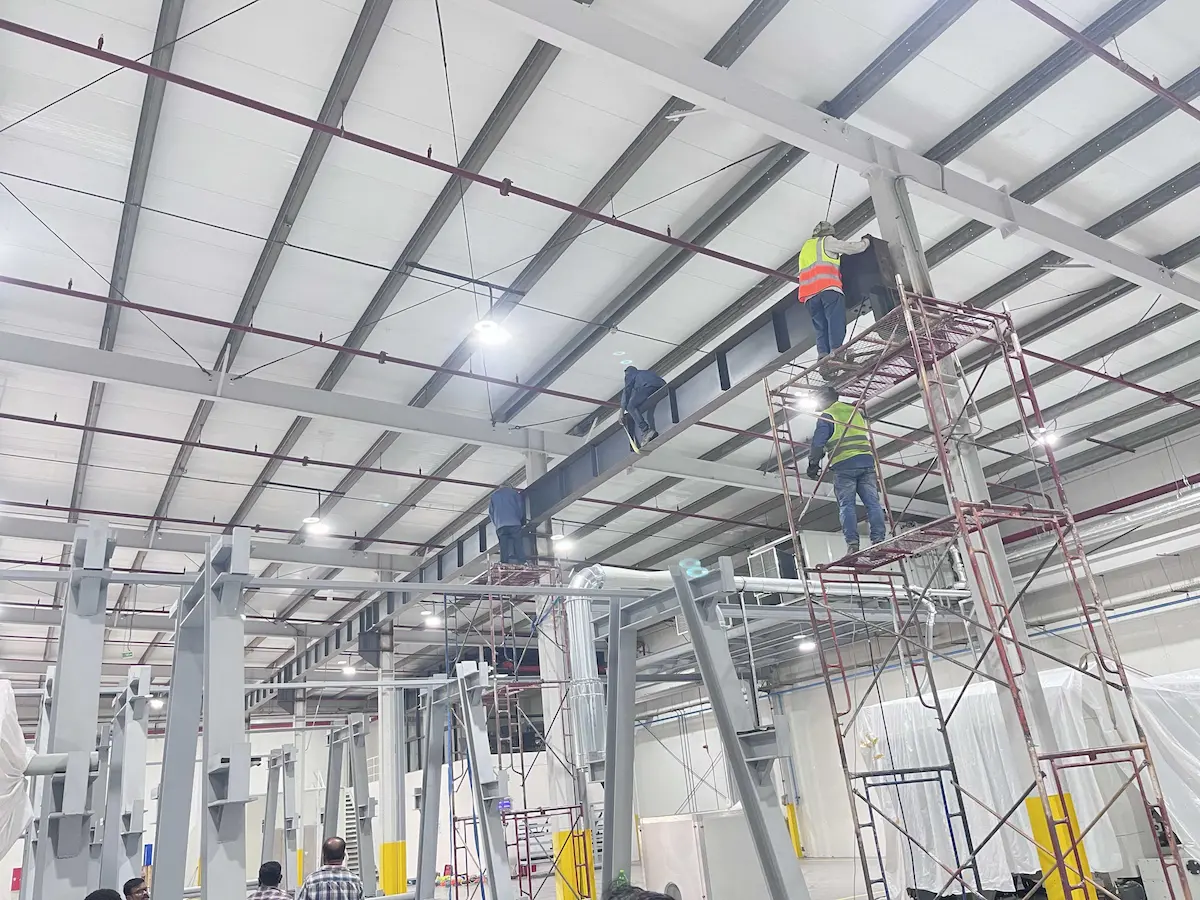

Saudi Arabia crane load-bearing beam and rail installation site
Significant Results: A Comprehensive Boost in Factory Efficiency
After project completion, HSCRANE’s support beam and rail system significantly improved the plant’s overall capacity and lifting efficiency. The overhead crane now operates more smoothly, handles heavy materials more efficiently, and offers improved safety and durability while reducing maintenance costs.
The customer expressed high recognition of HSCRANE’s technical strength and service quality. The project not only laid a solid foundation for future production line expansion but also demonstrated HSCRANE’s strong capabilities in overseas project management, structural engineering design, and environmental-adapted industrial solutions—providing reliable lifting support for industrial upgrading in Saudi Arabia and the broader Middle East region.
